Pro Ecosystem Pond Kit w/ Submersible Pump, 7' Falls, 1900 gph

SKU
KIT-ECO-SP-7f-1900
Grouped product items
Product Name Qty
Helix Pond Skimmer-Sub, Pre-Drilled Helix Pond Skimmer-Sub, Pre-Drilled
$599.99
Autofill Kit with Faucet Connection - Helix Skimmer Autofill Kit with Faucet Connection - Helix Skimmer
$74.99
Matala Pad for Helix Skimmer Matala Pad for Helix Skimmer
$21.99
ShinMaywa 4800 Submersible Pump ShinMaywa 4800 Submersible Pump
$479.99
Triton Check Valve Assembly Atlantic Triton Check Valve Assembly Atlantic
$79.99
Aqua Ultraviolet Ultima II 2000 Filter 2 In Valve Aqua Ultraviolet Ultima II 2000 Filter 2 In Valve
$1,526.30
Aqua UV Classic 40 watt UV Sterilizer/Clarifier Aqua UV Classic 40 watt UV Sterilizer/Clarifier
$568.50
Aquascape Waterfall Spillway 22 Aquascape Waterfall Spillway 22"
$224.99
Flexible Schedule 40 PVC Hose - 2in x 25ft Flexible Schedule 40 PVC Hose - 2in x 25ft
$119.00
CrystalClear Biological Clarifier - 24 Packets (Treats 24,000 gal) CrystalClear Biological Clarifier - 24 Packets (Treats 24,000 gal)
$39.99
PVC Adapter Fitting - 2 PVC Adapter Fitting - 2" MPT x 2" Slip
$3.39
Total selected:

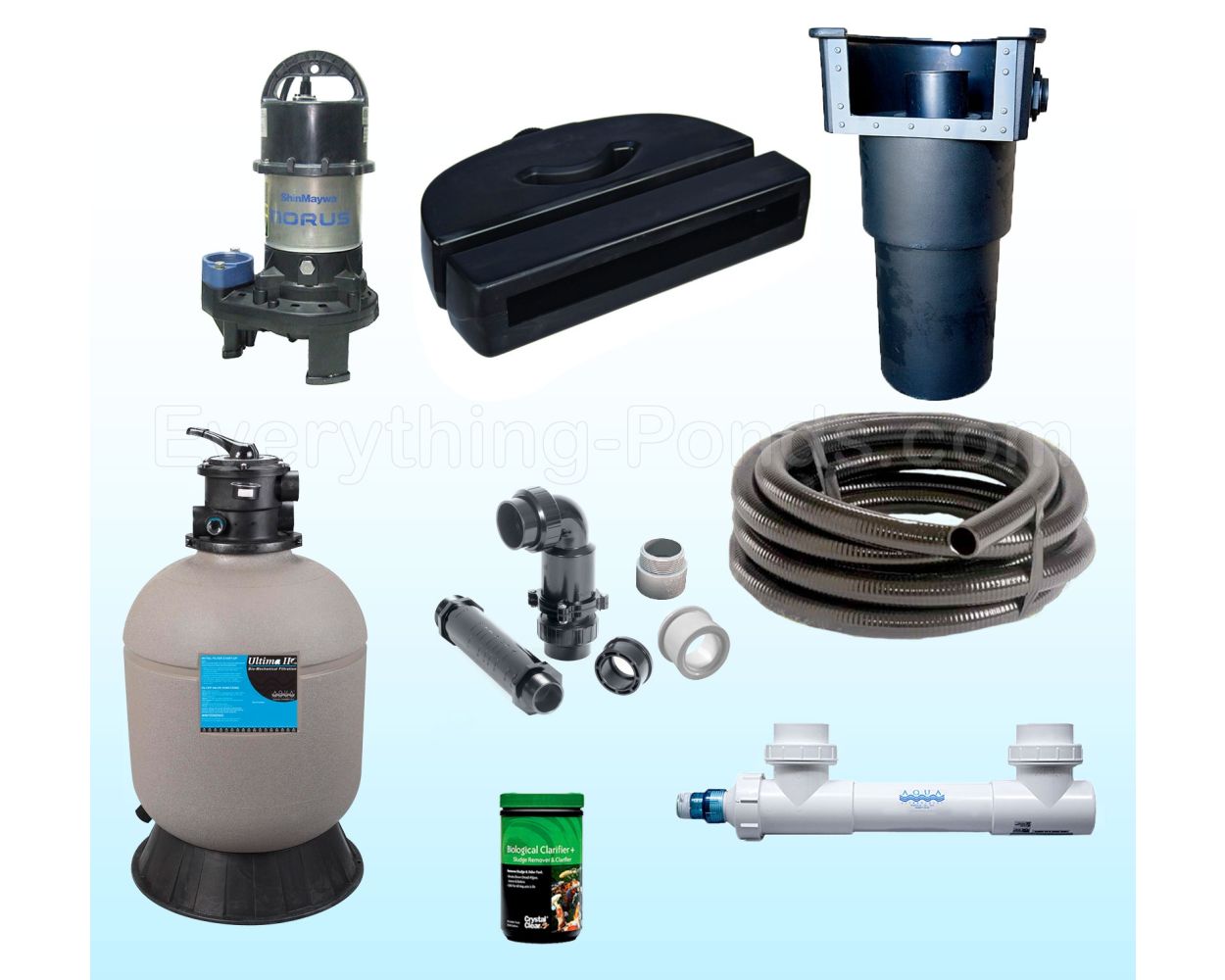

The pro level ecosystem pond kit includes all our best equipment recommendations in one convenient package. The kit on this page is designed to pump 1900 gallons per hour.

Size of pond for the 1900 gph kit:

  • Fish Pond - up to 1900 gallons of water in the pond for pumping the entire contents of the pond each hour.
  • No Fish in Pond - up to 3800 gallons of water max in the pond for pumping the entire pond every one to two hours.

You do not have to purchase all items in the kit, you set quantity to 0 below if there is an item you do not want to purchase.

Add to Cart to see Total Price

Specs

  • Flow Rate: 1900 gph
  • Pump: Submersible
  • Waterfall Height: 7 Feet
  • Waterfall Width: 22"
  • Pond Size: Fish ponds up to 1900 gallons, and non-fish ponds up to 3800 gallons.
  • Example Pond Size:
  • Includes Liner? No
  • Includes Waterfall Spillway? Yes
  • Head Pressure: 16’ - 7’ high waterfall, 2” pipe 25’, 7’ for filter

This kit does not include a liner. We recommend our Premium Grade RPE Laminated Liner for free-form shapes, or our Rectangular Box-Welded Liners for formal rectangular shapes.

Order of Water Flow / Installation

  1. Water enters skimmer
  2. Water enters pump inside skimmer. Pump has 2" threaded outlet
  3. Pump connects to check valve with 2" slip outlet
  4. Short piece of 2" PVC pipe to connect check valve to PVC adapter
  5. PVC adapter 2" Slip to 2" MPT threaded
  6. 2" bulkhead fitting that comes with helix skimmer
  7. PVC Adapter 2" MPT to 2" slip that comes with skimmer
  8. 2" pipe from skimmer to filter
  9. Filter with 2" inlet/outlet
  10. 2" pipe run from filter to uv clarifier
  11. UV clarifier with 2" inlet/outlet
  12. 2" pipe to waterfall
  13. PVC fitting 2" slip to 2" MPT connects to
  14. 2" threaded inlet of the waterfall unit

Included Fittings in Kit: (2) 2" Slip x 2" MPT, (1) Bulkhead Fitting 2" (comes with skimmer), (1) 2" Slip x 2" MPT (comes with skimmer)



Ecosystem Pond w/ External Filter and Submersible Pump





More Information
SKU KIT-ECO-SP-7f-1900
