Pro Ecosystem Pond Kit w/ Submersible Pump, 3' Falls, 5400 gph
SKU
KIT-ECO-SP-3f-5400

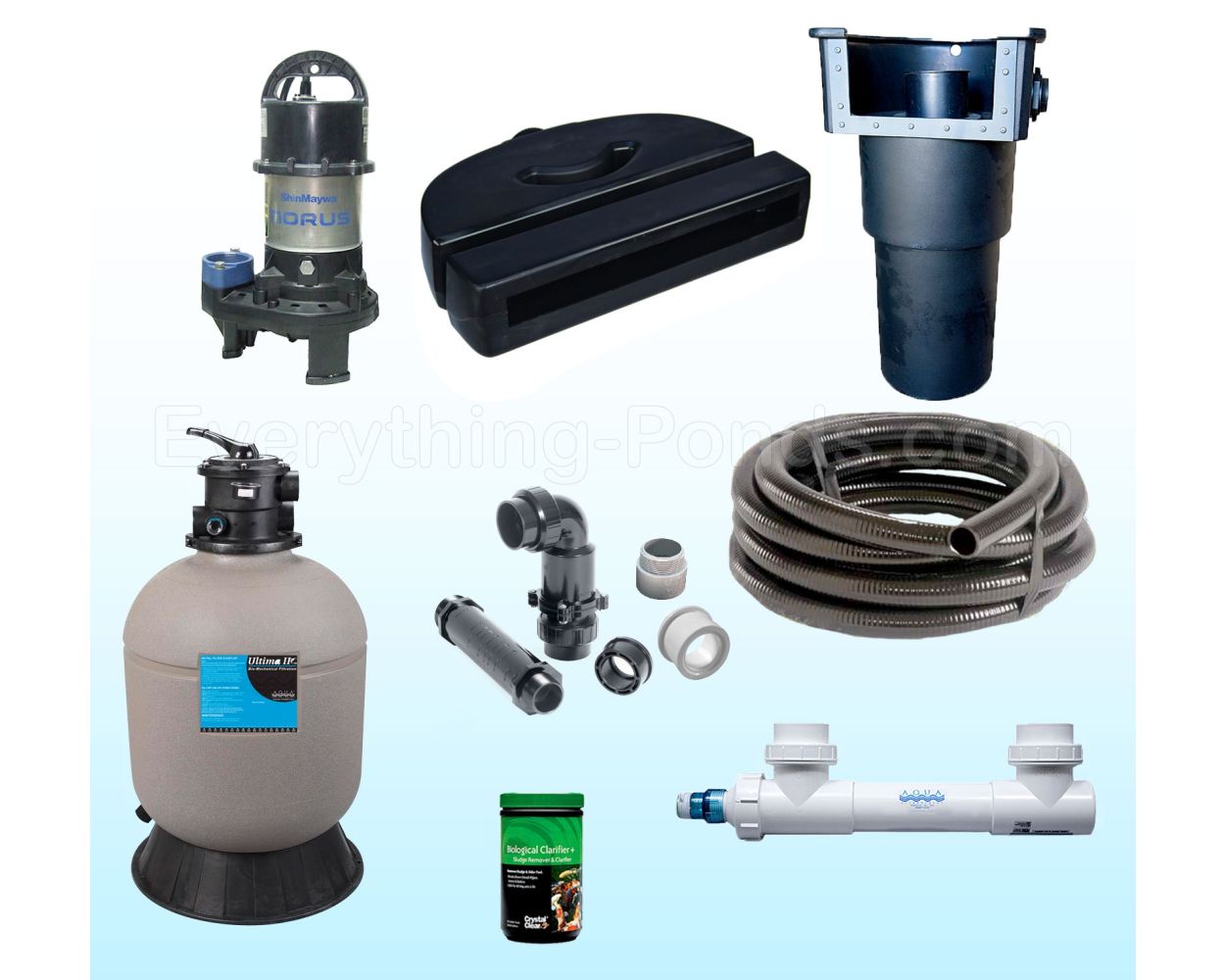

The pro level ecosystem pond kit includes all our best equipment recommendations in one convenient package. The kit on this page is designed to pump 9000 gallons per hour.
Size of pond for the 9000 gph kit:
- Fish Pond - up to 9000 gallons of water in the pond for pumping the entire contents of the pond each hour.
- No Fish in Pond - up to 18,000 gallons of water max in the pond for pumping the entire pond every one to two hours.
You do not have to purchase all items in the kit, you set quantity to 0 below if there is an item you do not want to purchase.
Add to Cart to see Total Price
Specs
- Flow Rate: 5400 gph
- Pump: Submersible
- Waterfall Height: 3 Feet
- Waterfall Width: 44"
- Pond Size: Fish ponds up to 5400 gallons, and non-fish ponds up to 10,800 gallons.
- Example Pond Size:
- Includes Liner? No
- Includes Waterfall Spillway? Yes
- Head Pressure: 21’ with 2” pipe, 50’ pipe, 3’ high waterfall (could save 5’ of head with 3” pipe)
This kit does not include a liner. We recommend our Premium Grade RPE Laminated Liner for free-form shapes, or our Rectangular Box-Welded Liners for formal rectangular shapes.
Order of Water Flow / Installation
- Water enters skimmer
- Water enters pump inside skimmer. Pump has 2" threaded outlet
- Connect to check valve with 2" slip outlet
- Short piece of 2" PVC pipe to connect check valve to PVC adapter
- PVC adapter 2" slip to 2" MPT threaded
- 2" bulkhead fitting that comes with helix skimmer
- PVC adapter 2" MPT to 2" slip that comes with skimmer
- 2" Pipe from skimmer to filter
- Bio filter with 2" inlet/outlet
- 2" pipe run from filter to uv clarifier
- UV clarifier with 2" inlet/outlet
- 2" pipe to wye fitting
- Wye fitting to convert single pipe to 2 separate pipes - one for each waterfall spillway
- 2" piping to each waterfall unit
- (quantity 2 - one for each waterfall spillway) PVC fitting 2" slip to 2" MPT
- PVC fitting connects to threaded inlet of the waterfall unit
Included Fittings in Kit: (3) 2" Slip x 2" MPT, (1) Bulkhead Fitting 2" (comes with skimmer), (1) 2" Slip x 2" MPT (comes with skimmer), (1) 2" Wye Fitting
| SKU | KIT-ECO-SP-3f-5400 |
|---|
