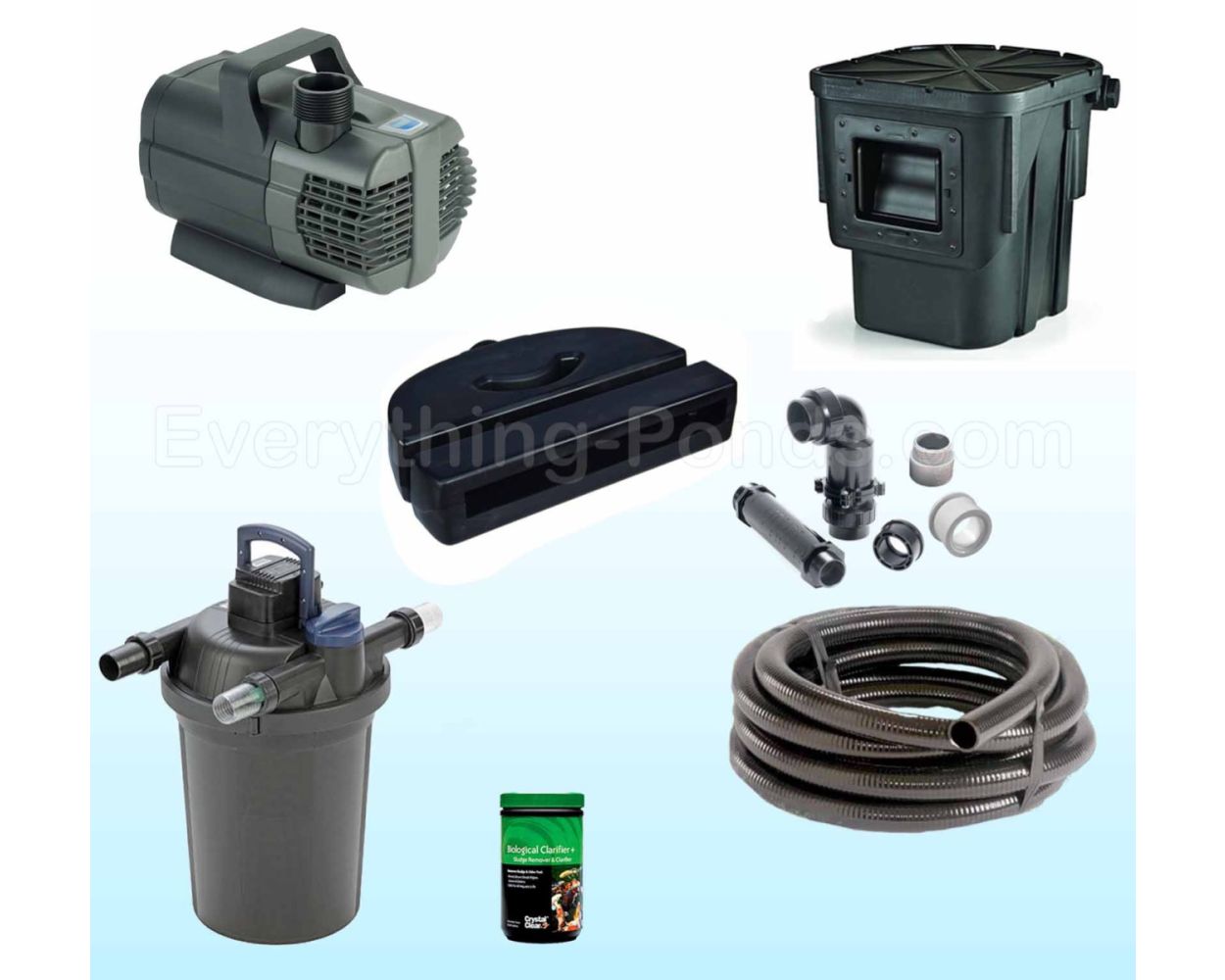

Ecosystem Pond Kit w/ Submersible Pump, 4' Falls, 3100 gph

The pro level ecosystem pond kit includes all our best equipment recommendations in one convenient package. The kit on this page is designed to pump 3100 gallons per hour.

Size of pond for the 3100 gph kit:

  • Fish Pond - up to 3100 gallons of water in the pond for pumping the entire contents of the pond each hour.
  • No Fish in Pond - up to 6200 gallons of water max in the pond for pumping the entire pond every one to two hours.

You do not have to purchase all items in the kit, you set quantity to 0 if there is an item you do not want to purchase.

In stock

SKU
KIT-ECO-SP-4f-3100
Description

Specs

  • Flow Rate: 3100 gph
  • Pump: Submersible
  • Waterfall Height: 2 Feet
  • Waterfall Width: 22"
  • Pond Size: Fish ponds up to 3100 gallons, and non-fish ponds up to 6200 gallons.
  • Example Pond Size:
  • Includes Liner? No
  • Includes Waterfall Spillway? Yes
  • Head Pressure: 14’ with 2’ high waterfall, 25’ of 2” pipe, UV installed

This kit does not include a liner. We recommend our Premium Grade RPE Laminated Liner for free-form shapes, or our Rectangular Box-Welded Liners for formal rectangular shapes.

Ecosystem Pond w/ External Filter and Submersible Pump

Order of Water Flow / Installation

  1. Water enters skimmer
  2. Water enters pump inside skimmer. Pump has 2" male pipe thread outlet (MPT)
  3. Use included adapter to convert to 2" female pipe thread (Threaded Coupling - 2" FPT x 2" FPT)
  4. Check Valve with 2" slip outlet
  5. 2" pipe attached to check valve, exit from skimmer through hole above water level
  6. 2" Pipe run from skimmer to filter
  7. Filter with 2" inlet/outlet (MPT but use included slip fitting)
  8. 2" pipe to waterfall
  9. PVC fitting 2" slip to 2" MPT
  10. 2" threaded inlet into waterfall unit

Included Fittings in Kit: (1) 2" Slip x 2" MPT
