Pro Ecosystem Pond Kit w/ External Pump, 3' Falls, 5200 gph

SKU
KIT-ECO-EP-3f-5200
Grouped product items
Product Name Qty
Helix Pond Skimmer-Ext, Pre-Drilled Helix Pond Skimmer-Ext, Pre-Drilled
$599.99
Matala Pad for Helix Skimmer Matala Pad for Helix Skimmer
$21.99
Autofill Kit with Faucet Connection - Helix Skimmer Autofill Kit with Faucet Connection - Helix Skimmer
$74.99
Sequence Priming Pot Strainer Basket - 2 In 90 ci Sequence Priming Pot Strainer Basket - 2 In 90 ci
$128.00
Sequence 4K 8200 Energy Saving Pump Sequence 4K 8200 Energy Saving Pump
$947.00
Aqua Ultraviolet Ultima II 10,000 Filter with 2 In Valve Aqua Ultraviolet Ultima II 10,000 Filter with 2 In Valve
$3,199.88
Aqua UV Classic 120 watt UV Sterilizer/Clarifier Aqua UV Classic 120 watt UV Sterilizer/Clarifier
$1,504.85
Aquascape Waterfall Spillway 22 Aquascape Waterfall Spillway 22"
$224.99
Flexible Schedule 40 PVC Hose - 2 Inch x 50 Ft Flexible Schedule 40 PVC Hose - 2 Inch x 50 Ft
$233.00
CrystalClear Biological Clarifier - 24 Packets (Treats 24,000 gal) CrystalClear Biological Clarifier - 24 Packets (Treats 24,000 gal)
$39.99
PVC Adapter Fitting - 2 PVC Adapter Fitting - 2" MPT x 2" Slip
$3.39
PVC Union Fitting - 2 PVC Union Fitting - 2" Slip
$24.99
PVC Wye Fitting - 2 PVC Wye Fitting - 2" Slip
$49.99
PVC Threaded Nipple Fitting - 2 PVC Threaded Nipple Fitting - 2" Threaded
$5.29
Swing Check Valve - 2 Swing Check Valve - 2" Threaded
$49.99
Total selected:

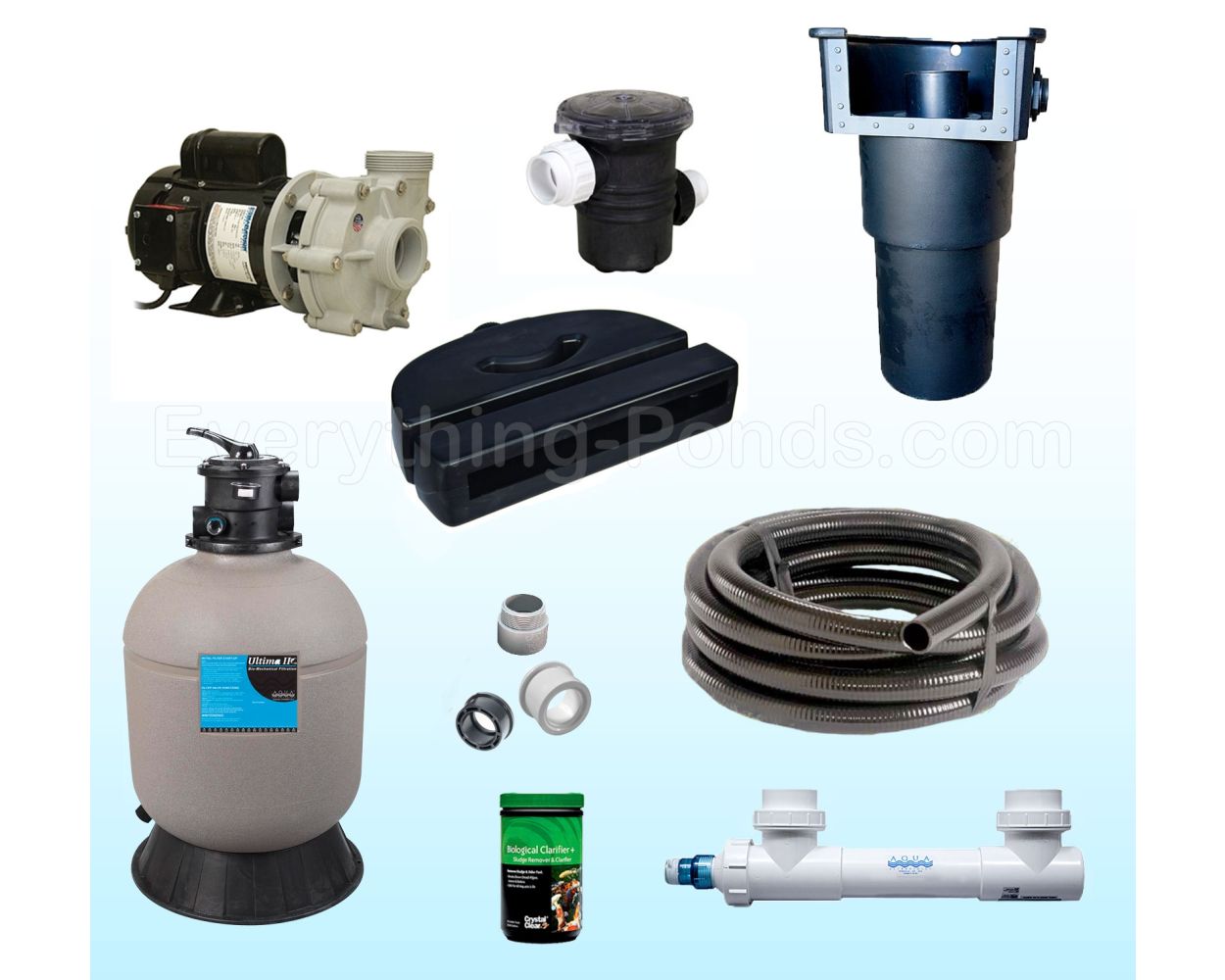

The pro level ecosystem pond kit includes all our best equipment recommendations in one convenient package. The kit on this page is designed to pump 5200 gallons per hour.

Size of pond for the 5200 gph kit:

  • Fish Pond - up to  5200 gallons of water in the pond for pumping the entire contents of the pond each hour.
  • No Fish in Pond - up to 10,400 gallons of water max in the pond for pumping the entire pond every one to two hours.

You do not have to purchase all items in the kit, you set quantity to 0 below if there is an item you do not want to purchase.

Add to Cart to see Total Price

Specs

  • Flow Rate: 5200 gph
  • Pump: External
  • Waterfall Height: 3 Feet
  • Waterfall Width: 44" (two 22" waterfall units included in kit)
  • Pond Size: Fish ponds up to 5200 gallons, and non-fish ponds up to 10,400 gallons.
  • Example Pond Size:
  • Includes Liner? No
  • Includes Waterfall Spillway? Yes
  • Head Pressure:    16'’ of head with 3’ high waterfall, 50’ of 2” pipe, UV installed

This kit does not include a liner. We recommend our Premium Grade RPE Laminated Liner for free-form shapes, or our Rectangular Box-Welded Liners for formal rectangular shapes.

Pro Ecosystem Pond Kit - External pump - 2100 gph

Order of Water Flow / Installation

  1. Water enters skimmer
  2. Check valve with 2" threaded outlet (in skimmer)
  3. 2" threaded nipple adapter
  4. 2" bulkhead fitting that comes with helix skimmer
  5. PVC adapter 2" MPT to 2" slip that comes with skimmer
  6. 2" pipe from skimmer to priming pot (optional)
  7. Priming pot strainer basket with 2" inlet/outlet
  8. Priming pot 2" threaded outlet direct connection to pump 2" FPT inlet
  9. 2" outlet of 4k series pump 2" MPT x 2" slip
  10. Short stub of 2" pipe into 2" PVC union fitting for quick disconnect of pump
  11. Pipe run 2" pipe from union fitting to filter
  12. Filter with 2" inlet/outlet
  13. 2" Pipe run from filter to uv clarifier
  14. Filter with 2" inlet/outlet
  15. 2" pipe to waterfall
  16. 2" wye fitting to split pipe into two separate runs for connection to 2 waterfall spillways
  17. quantity (2) -  2" pipe run to each waterfall spillway
  18. quantity (2) - PVC fitting 2" Slip to 2" MPT
  19. quantity (2) - 2" threaded inlet into waterfall unit

Included Fittings in Kit:

  • (1) 2" Slip x 2" MPT
  • (1) Bulkhead Fitting 2" (comes with skimmer)
  • (1) 2" Slip x 2" MPT (comes with skimmer)
  • (1) 2" PVC Union
  • (1) 2" Threaded Check Valve
  • (1) 2" Threaded Nipple Fitting
  • Extra waterfall unit: 2" Y fitting, 2" Slip x 2" MPT



More Information
SKU KIT-ECO-EP-3f-5200
