Choosing the Right Garden Pond Liners

Whether you're building a large commercial pond, or a small water garden, pond liners are essential to making your pond watertight. Without a good pond or water garden liner, the pond will slowly (or quickly) loose water into the ground below.





Premium Grade RPE Pond Liner Laminated

Premium Grade RPE Pond Liner (Laminated)

Our New and Improved Laminated 30 mil RPE Liner for Any Sized Pond, Lake or Stream!

  • 30 mil liner perfect liner for ponds, water features, lakes, streams, rivers, dams, golf courses, irrigation, aquaponics & dams.
  • Laminated coating takes the reliability of traditional RPE liners and adds high UV resistance, better hydrostatic resistance while making the liner slightly more 'bendable' than a traditional 30 mil RPE Liner.
  • Single piece liners available in any size up to 60,000 sqft!
  • Can be left in the sun full time with no covering and still retains a 20 year warranty.
  • 3 times stronger than EPDM rubber liners, at 1/3 the weight.
  • NSF-61 certified for organic farming and drinking water applications!
  • Our Premium Grade liners are made by North American companies, and are held to higher quality control standards than 'economy grade' liners commonly made in China.

Reliable  -  Strong  -  Light Weight  -  UV Resistant



More Info





Premium Grade RPE Pond Liner

Premium Grade RPE Pond Liner (Unlaminated)

Our Traditional Unlaminated RPE Liner Available in 3 thicknesses: 24, 30 and 40 mils thick.

  • Similar to our Laminated RPE liner, but without the laminated coating for either tighter budgets, or increased puncture resistance with thicker liners.
  • Available in 3 thicknesses: 24 mil budget strength, 30 mil regular strength and an extra strength, double-reinforced 40 mil.
  • Available in up to 40 mil for higher puncture resistance than our Laminated RPE.
  • Needs to be covered with water, soil, sand or rock to achieve long term UV protection. Use our Laminated RPE for UV long-term protection without covering.
  • Single piece liners available in any size up to 60,000 sqft!
  • 3 to 5 times stronger than EPDM rubber liners, at 1/3 the weight.
  • NSF-61 certified for organic farming and drinking water applications!
  • Our Premium Grade liners are North American made, and are held to higher quality control standards than 'economy grade' liners commonly made in other countrieds like China.

Reliable  -  Strong  -  Light Weight



More Info

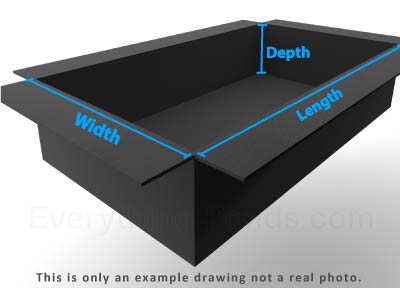

Rectangular Box-Welded Pond Liner

Rectangular Box-Welded Liner Inserts

3D Shaped Liner Inserts for Rectangular Ponds, Tanks, Planters or Aquaponics Setups.

  • High quality, flexible liner, heat welded into 3D shaped boxes at your exact size specifications!
  • No folding or pleating needed like a flat sheet of liner!
  • Custom sizes available!
  • NSF-61 Certified: safe for fish, plants, organic farming and even drinking water!
  • Very puncture and tear resistant while still remaining flexible. Many times stronger than EPDM.
  • Please note this is a FLEXIBLE liner insert and is not free-standing. As such, some kind of frame or tank structure is required to put the liner in.

No folding  -  3D Shaped  -  Very Strong & Reliable



More Info





Circular Box-Welded Pond Liner

Circular Box-Welded Liner Inserts

3D Shaped Liner Inserts for Circular Ponds or Cylindrical Tanks.

  • High quality, flexible liner, heat welded into 3D shaped cylinders at your exact size specifications!
  • No folding or pleating needed like a flat sheet of liner!
  • Custom sizes available!
  • NSF-61 Certified: safe for fish, plants, organic farming and even drinking water!
  • Very puncture and tear resistant while still remaining flexible. Many times stronger than EPDM.
  • Please note this is a FLEXIBLE liner insert and is not free-standing. As such, some kind of frame or tank structure is required to put the liner in.

No folding  -  3D Shaped  -  Very Strong & Reliable



More Info

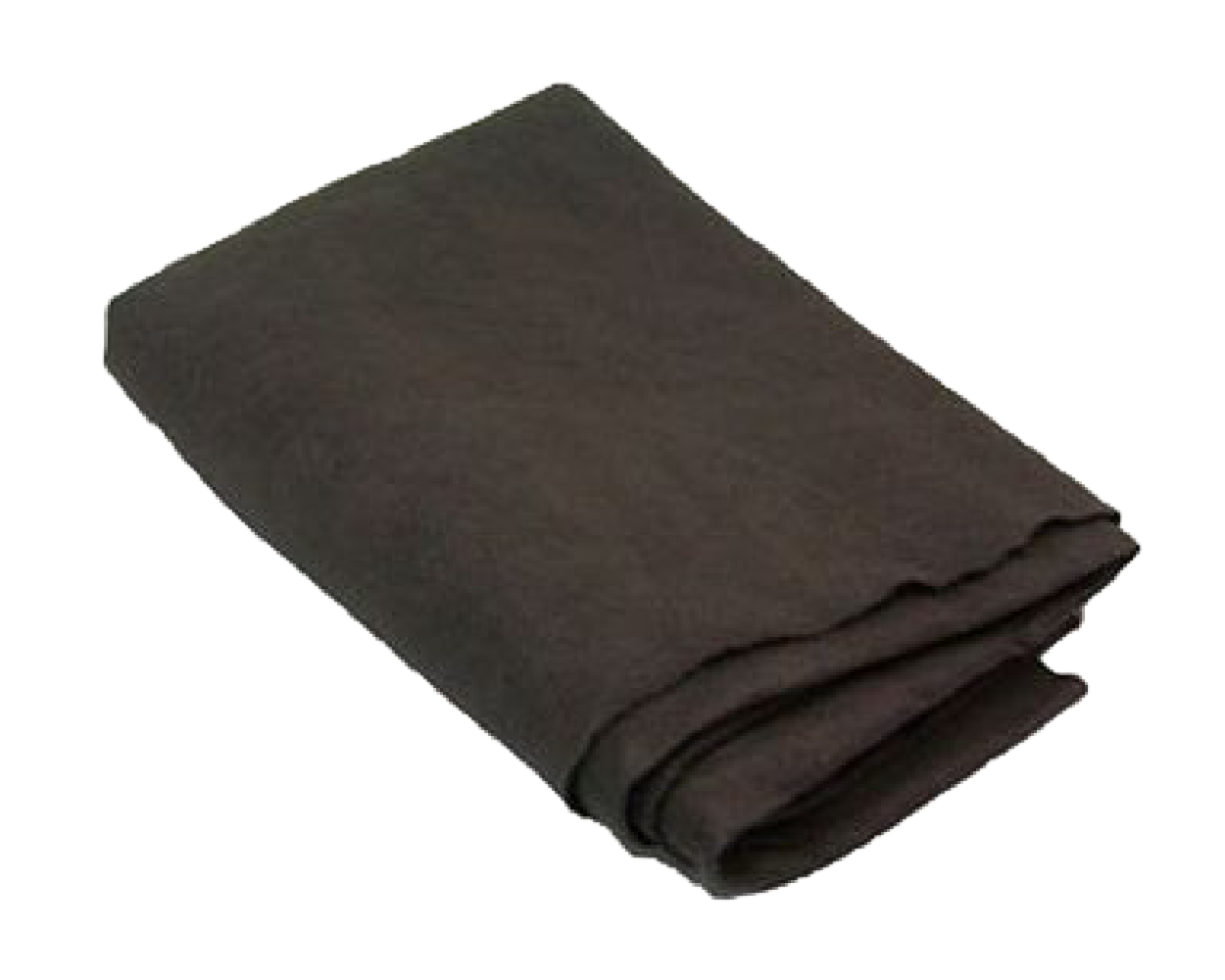

Pond Liner Underlayment

Pond Liner Underlayment - 8 oz.

Acts as a Protective Layer Above or Below a Pond Liner

  • Helps prevent punctures or abrasion wear to pond liners when lining rouch surfaces.
  • Stabilizes the ground beneath the liner, helping to prevent 'over-stretching' of the liner.
  • Comes in 15' wide rolls.
  • Seams are usually simply overlapped. Can be fabricated to specific sized panels if desired (email for quote).
  • Works great on top of a liner to create a higher friction, protected surface for placing sand or rock on top of the liner.



More Info



Other Liners & Accessories

liner size wizard banner

Flat Liners vs. Preformed Liners

There are two main categories of pond and water garden liners. First there are flat, flexible liners, that are able to bend and conform to any custom shape you can build. The second type are preformed pond liners, which are manufactured into a pre-determined shape out of some kind of flexible liner, hardened plastic or fiberglass.

Flexible Pond Liners

The first and more popular option when it comes to pond and water garden liners, are flexible liners made out of materials like Reinforced Polyethylene, Polypropylene or EPDM Rubber. There are other cheaper materials available, however for the purpose of building a lasting pond, it's best to stick with one of the above mentioned pond liner materials. Each liner has it's own strengths and weeknesses, read on to learn more about each.

Reinforced Polyethylene (RPE) Liners

RPE liners are considered one of the most durable pond liners available, lasting up to 40 years with excellent puncture resistance. In many cases, RPE liners don't even need a protective underlayment because of their higher strength. Another advantage of RPE is they can be produced in very large sizes because of their light weight, up to 60,000 sq ft in a single panel in the case of our Premium Grade RPE Pond Liner. However, a possible disadvantage to RPE liners is that they are slightly less bendable to work with compared with some other flexible liners like EPDM rubber. This is only a slight disadvantage if a pond has a lot of sharp bends and corners that require a ton of folding and pleatingr. Even then, it's usually not that big of a deal, and we still opt for RPE because of it's higher strength and durability. One thing to remember when buying any liner, is that you have to be careful about who you buy the liner from. Not all liners are created equal. Our Premium Grade RPE liners are guaranteed to be fish and plant safe, and come with a 25 year warranty. In addition to ponds and lakes, RPE is commonly used as an indistrial liner as well.

  1. Price Based On Size Starting At:
    $99.00

    High quality RPE liner is extremely strong and lightweight, is fish and plant safe, and is available in very large panels! Each liner is made to order and is ready to ship within 2 to 3 business days.

    Learn More

Box Welded Polypropylene Liners

When considering options for rectangular or circular shaped garden pond liners, holding tanks, vegitable filters or other applications, our box-welded polypropylene is an excellent product to consider. Not only is it light and strong, but it is highly UV resistant and safe for fish, plants and humans. In fact, our polypropylene liners are so safe, they are even rated for human drinking water applications. However, the main reason we like Polypropylene is that it can be easily box-welded into 3D shapes at our facility. Box-welding is the process of taking a flat liner and creating a 3D shaped box or cylinder through the process of heat welding the seams (see the picture on the right). The main advantage of box-welding is that all the corners are nice and clean with no folds or wrinkles necessary. If you've ever worked with a flat liner like EPDM rubber and tried to bend it around corners and ledges, you'll know that you will never get it completely flat as numerous folds and liner bunches will be necessary to conform it to the pond substrate. To learn more about, please see the box-welded polypropylene liners in our store.

  1. Price Based On Size Starting At:
    $99.99

    High quality, flexible liner, heat welded into 3D shaped boxes. Each liner is made by hand to order and ships within 4 to 6 business days.

    Learn More

Shelves for Box Liners

Looking for an easy way to add shelves to one of our rectangular box-welded liners? Try the Aquascape AquaBlox. These can be used to elevate plants, rocks or other objects off the bottom of the pond. They can also be used as a pump valut, which allows you to hide a pump inside the unit as well as strain out large objects from entering the pump.

  • Today's Price:
    $38.69
    Aquascape-AquaBlox-small

    The Aquascape Large AquaBlox is an extremely functional, multi-use unit that can be used as a pump vault, an easy to move in-pond shelf, and a basin for disappearing waterfalls. This is an upgraded size to the Aquascape Small Aquablox.

  • Today's Price:
    $47.69
    AquaBlox-Large

    The Aquascape Large AquaBlox is an extremely functional, multi-use unit that can be used as a pump vault, an easy to move in-pond shelf, and a basin for disappearing waterfalls. This is an upgraded size to the Aquascape Small Aquablox.

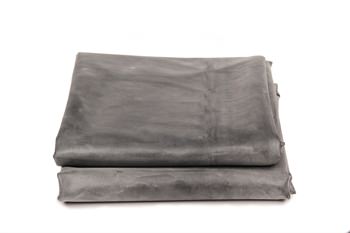

Rubber Liners

In the past, before RPE liners were fully developed, most ponds were built using 45 mil EPDM rubber garden pond liners. Although rubber liners are quite heavy and much less puncture resistant than our premium RPE liners, they are very flexible which is nice for ponds that have lots of bends, shelves and other features. However, unlike RPE, multiple panels can't be heat welded together. Heat welding is by far the most reliable way to seam a liner - it's possible with RPE, but not EPDM. However, it is possible to join two or more EPDM sheets together with liner tape. Because rubber is so much heavier than RPE, one of the disadvantages of rubber is that it's often more difficult to find and ship large pieces of EPDM due to weight concerns. If you need a large piece, it is usually better to go with a premium grade RPE liner since it's stronger, lighter and more cost effective. To learn more about large liners, please see our page on large pond liners.

  1. Firestone PondGuard EPDM Rubber Pond Liner
    Price Based On Size Starting At:
    $153.00

    High quality EPDM rubber liner that is fish safe and very flexible.

    Learn More

BUTL rubber is another type of rubber liner that isn't used as frequently as EPDM. To learn more about the differences between EPDM and BUTYL rubber liners, please see our page dedicated to Rubber Pond Liners. To learn more about one popular EPDM liner option, please see our page on Firestone pond liners, or buy Firestone PondGuard in our store here.

pvc pond liner
A Flexible PVC Pond Liner

PVC Liners

PVC liners are usually the least expensive option compared to other flexible liner materials, but their biggest downside is their lack of UV stability. What that means is that the water garden liner has to be completely buried with no direct sunlight contact, otherwise the liner will begin to break down, shortening the life span. If you do decide to go with a PVC liner, be sure to go with a good quality name. Some of the cheaper PVC garden pond liners may not be safe for fish due to the type of plasticizers used.

preformed pond liner
A Typical Preformed Pond Liner

Preformed Garden Pond Liners

While preformed pond liners are quite easy to install, they are somewhat less flexible with respect to size, shape and artistic freedom since they are purchased in a predetermined shape. While it is possible to find a preformed liner in an appropriate size for a large scale water garden or koi pond, often times they are used more as small garden pond liners. Typically preformed liners are made out of either plastic or fiberglass, which also makes it very difficult to install a pond skimmer. Installing a pond skimmer usually involves cutting a hole in the side of the liner, which usually isn't possible or is much more difficult with a hard shell liner. For more information please see our pages on fiberglass pond liners and plastic liners, pond liners for sale.

For more pond liner information, please click on one of the above links, or read our step by step guild entitled 'Building a Pond'.
