Large Pond Liners for Large-Scale Ponds

Large pond liners in single pieces are often used in larger scale projects such as lakes, streams, farm ponds, golf course water hazards, dams, irrigation ponds, aquaponics or large-scale water features. Everything Ponds Premium Grade RPE Pond liner is the perfect product for these larger applications because of it's high strength, light weight and high UV resistance.

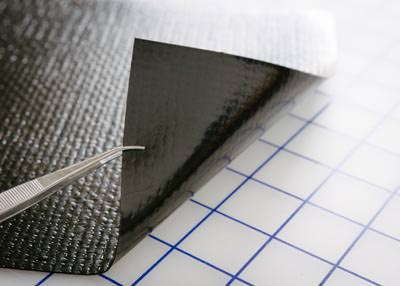

Premium Grade RPE Pond Liner Laminated

Premium Grade RPE Pond Liner (Laminated)

Our New and Improved Laminated 30 mil RPE Liner for Any Sized Pond, Lake or Stream!

  • 30 mil liner perfect liner for ponds, water features, lakes, streams, rivers, dams, golf courses, irrigation, aquaponics & dams.
  • Laminated coating takes the reliability of traditional RPE liners and adds high UV resistance, better hydrostatic resistance while making the liner slightly more 'bendable' than a traditional 30 mil RPE Liner.
  • Single piece liners available in any size up to 60,000 sqft!
  • Can be left in the sun full time with no covering and still retains a 20 year warranty.
  • 3 times stronger than EPDM rubber liners, at 1/3 the weight.
  • NSF-61 certified for organic farming and drinking water applications!
  • Our Premium Grade liners are made by North American companies, and are held to higher quality control standards than 'economy grade' liners commonly made in China.

Reliable  -  Strong  -  Light Weight  -  UV Resistant



More Info





Premium Grade RPE Pond Liner

Premium Grade RPE Pond Liner (Unlaminated)

Our Traditional Unlaminated RPE Liner Available in 3 thicknesses: 24, 30 and 40 mils thick.

  • Similar to our Laminated RPE liner, but without the laminated coating for either tighter budgets, or increased puncture resistance with thicker liners.
  • Available in 3 thicknesses: 24 mil budget strength, 30 mil regular strength and an extra strength, double-reinforced 40 mil.
  • Available in up to 40 mil for higher puncture resistance than our Laminated RPE.
  • Needs to be covered with water, soil, sand or rock to achieve long term UV protection. Use our Laminated RPE for UV long-term protection without covering.
  • Single piece liners available in any size up to 60,000 sqft!
  • 3 to 5 times stronger than EPDM rubber liners, at 1/3 the weight.
  • NSF-61 certified for organic farming and drinking water applications!
  • Our Premium Grade liners are North American made, and are held to higher quality control standards than 'economy grade' liners commonly made in other countrieds like China.

Reliable  -  Strong  -  Light Weight



More Info





Pond Liner Underlayment

Pond Liner Underlayment - 8 oz.

Acts as a Protective Layer Above or Below a Pond Liner

  • Helps prevent punctures or abrasion wear to pond liners when lining rouch surfaces.
  • Stabilizes the ground beneath the liner, helping to prevent 'over-stretching' of the liner.
  • Comes in 15' wide rolls.
  • Seams are usually simply overlapped. Can be fabricated to specific sized panels if desired (email for quote).
  • Works great on top of a liner to create a higher friction, protected surface for placing sand or rock on top of the liner.



More Info



Get a Liner in a Single Piece if you Can.

Because leaks are difficult and costly to detect and repair, it's usually best to find a single piece of liner large enough to fit your entire pond to minimize the risk of a seam leaking. Although the liner may be harder to work with in a single piece, you can avoid a lot of potential workmanship issues right off the bat by not having to seam together multiple sheets on site. For example, our Premium Grade RPE Liners are an excellent choice for large ponds because they are available in very large sized panels up to 60,000 square feet in a single panel. As well, RPE liners are about 1/3 of the weight of EPDM rubber liners, which makes them much easier to place and install when dealing with a large size. As an added bonus, our Premium Grade RPE is about 3 times more puncture resistant than EPDM for a more reliable installation. To learn more about RPE, please have a look at the product in our store.

liner size wizard banner

Combining Sheets to Make One Large Pond Liner

In some cases it may not be practical or possible to find a single piece of liner in the right size or shape to cover the entire project. In these cases, it will be necessary to seam multiple sheets together to create the desired size and shape. If good workmanship practices are followed, the seams will not leak, and can sometimes even be the strongest part of a liner system. However, if the process of seaming sections of large pond liner is rushed or done improperly, it is possible for problems or leaks to develop down the road. So do it right the first time! Or if you don't want the hassle of seaming a liner on site, order a Premium Grade RPE liner like mentioned above, which is available in very large sized pieces right from our factory.

Common Materials for Large Pond Liners

The most popular materials for creating large pond liners include RPE (Reinforced Polyethylene), PVC, Polypropylene and Rubber (for a general description of these three types of liners, please have a look at our page on pond liners). Although rubber liners are popular for small to medium sized ponds, we at everything-ponds.com prefer RPE liners for larger sized ponds due to their lighter weight, high puncture resistance, UV resistance and fish-safe qualities, not to mention they can be purchased in very large sizes. Rubber liners, in addition to being less puncture resistant, can quickly become unmanageable in large sizes due to weight.

Video: RPE Liners vs. EPDM Rubber



Bentonite Liners

Bentonite is well suited as a large pond liner due to it's ease of combining multiple individual sheets to create one large liner system. Bentonite is a special type of clay and can expand up to 15 times it's weight when hydrated. Because of this unique ability, the seams between bentonite sheets will self-seal, requiring no additional welding or seaming to create a watertight seal. The one disadvantage of bentonite systems is the requirement for a certain amount of confining weight on top of the liner. Bentonite works by expanding and creating a watertight seal in a confined space. Therefore, without confinement, the product has nothing to expand against, thus loosing it's ability to create a pressurized seal. What this means in terms of your pond is that some kind of fill material will need to be placed on top of the liner to provide some confining weight. Depending on the look or function you're going for, this may or may not be possible. For example, for a decorative pond with vertical walls, it just wouldn't be possible to provide confining weight on the wall areas without pouring some kind of concrete skim coat. Even if the walls were sloped, care would have to be taken when choosing a balast material so that presentation and water quality were not negatively affected. However, if your application is a water hazard at a golf course, where the goal is to create a natual looking pond, then bentonite might be a good choice since the native soil or clay ballast material would help create a natural look at the bottom of pond.

rubber seam tape
Firestone QuickSeam Tape for joining
multiple rubber sheets.
