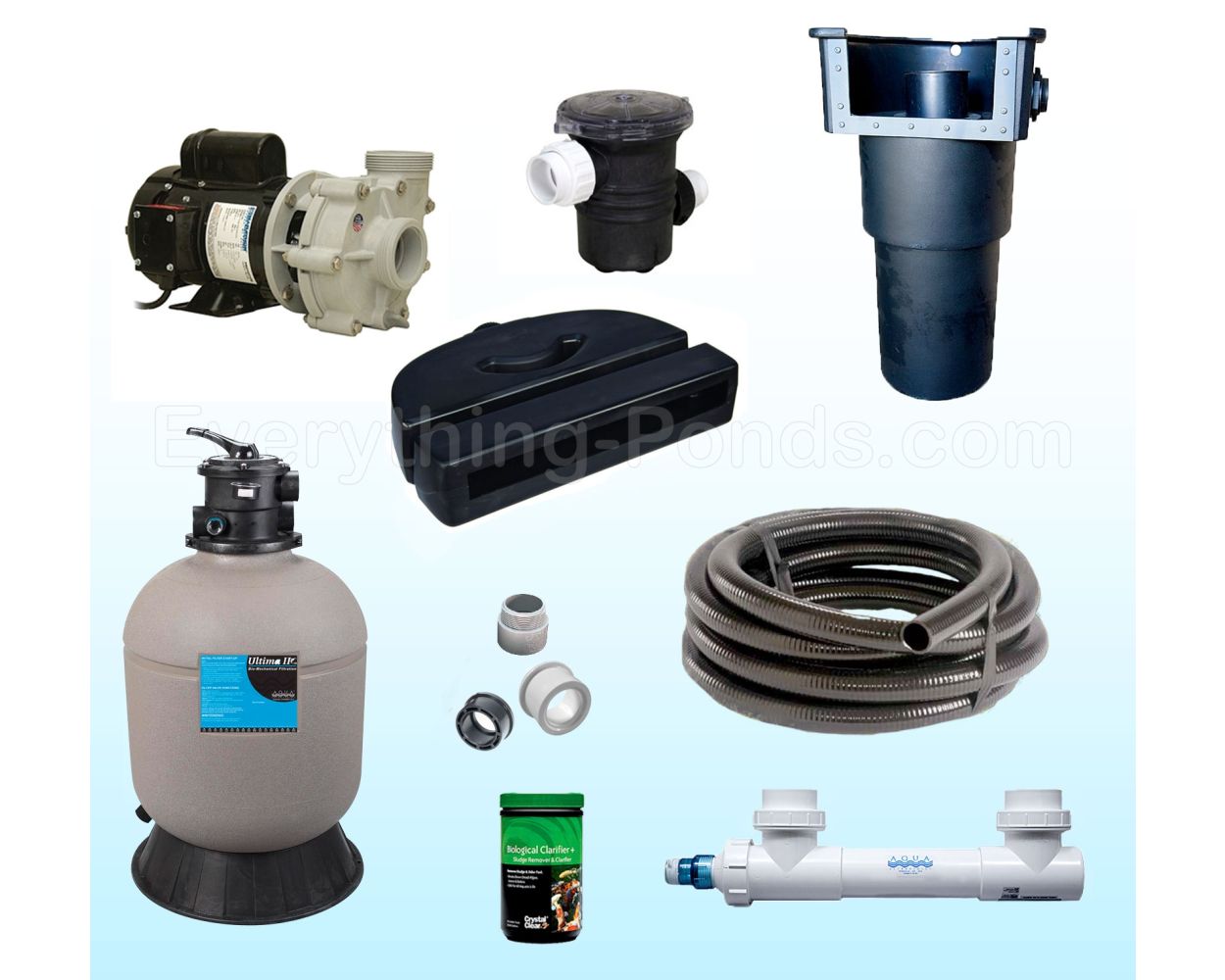

Pro Ecosystem Pond Kit w/ External Pump, 7' Falls, 3500 gph
SKU
KIT-ECO-EP-7f-3500
The pro level ecosystem pond kit includes all our best equipment recommendations in one convenient package. The kit on this page is designed to pump 3500 gallons per hour.
Size of pond for the 3500 gph kit:
- Fish Pond - up to 3500 gallons of water in the pond for pumping the entire contents of the pond each hour.
- No Fish in Pond - up to 7000 gallons of water max in the pond for pumping the entire pond every one to two hours.
You do not have to purchase all items in the kit, you set quantity to 0 below if there is an item you do not want to purchase.
Add to Cart to see Total Price
Specs
- Flow Rate: 3500 gph
- Pump: External
- Waterfall Height: 7 Feet
- Waterfall Width: 22"
- Pond Size: Fish ponds up to 3500 gallons, and non-fish ponds up to 7000 gallons.
- Example Pond Size:
- Includes Liner? No
- Includes Waterfall Spillway? Yes
- Head Pressure: 18’ with 7’ high waterfall, 50’ of 2” pipe, UV
This kit does not include a liner. We recommend our Premium Grade RPE Laminated Liner for free-form shapes, or our Rectangular Box-Welded Liners for formal rectangular shapes.
Order of Water Flow / Installation
- Water enters skimmer
- Check valve with 2" thread outlet (inside skimmer)
- 2" nipple fitting
- 2" bulkhead fitting that comes with helix skimmer
- PVC adapter 2" MPT to 2" slip that comes with skimmer
- 2" pipe from skimmer to priming pot (optional)
- Priming pot strainer basket with 2" inlet/outlet
- Priming pot 2" threaded outlet direct connection to pump 2" female threaded inlet
- 2" outlet of 4k series pump
- Short stub of 2" pipe into 2" PVC union fitting for quick disconnect of pump
- Pipe run 2" pipe from union fitting to filter
- Filter with 2" inlet/outlet
- 2" pipe from filter to UV clarifier
- Filter with 2" inlet/outlet
- 2" pipe to waterfall
- PVC Fitting 2" slip to 2" MPT
- 2" threaded inlet into waterfall unit
Included Fittings in Kit:
- (1) Bulkhead Fitting 2" (comes with skimmer)
- (1) 2" Slip x 2" MPT (comes with skimmer)
- (1) 2" PVC Union
- (1) 2" Threaded Check Valve
- (1) 2" Threaded Nipple Fitting
| SKU | KIT-ECO-EP-7f-3500 |
|---|
