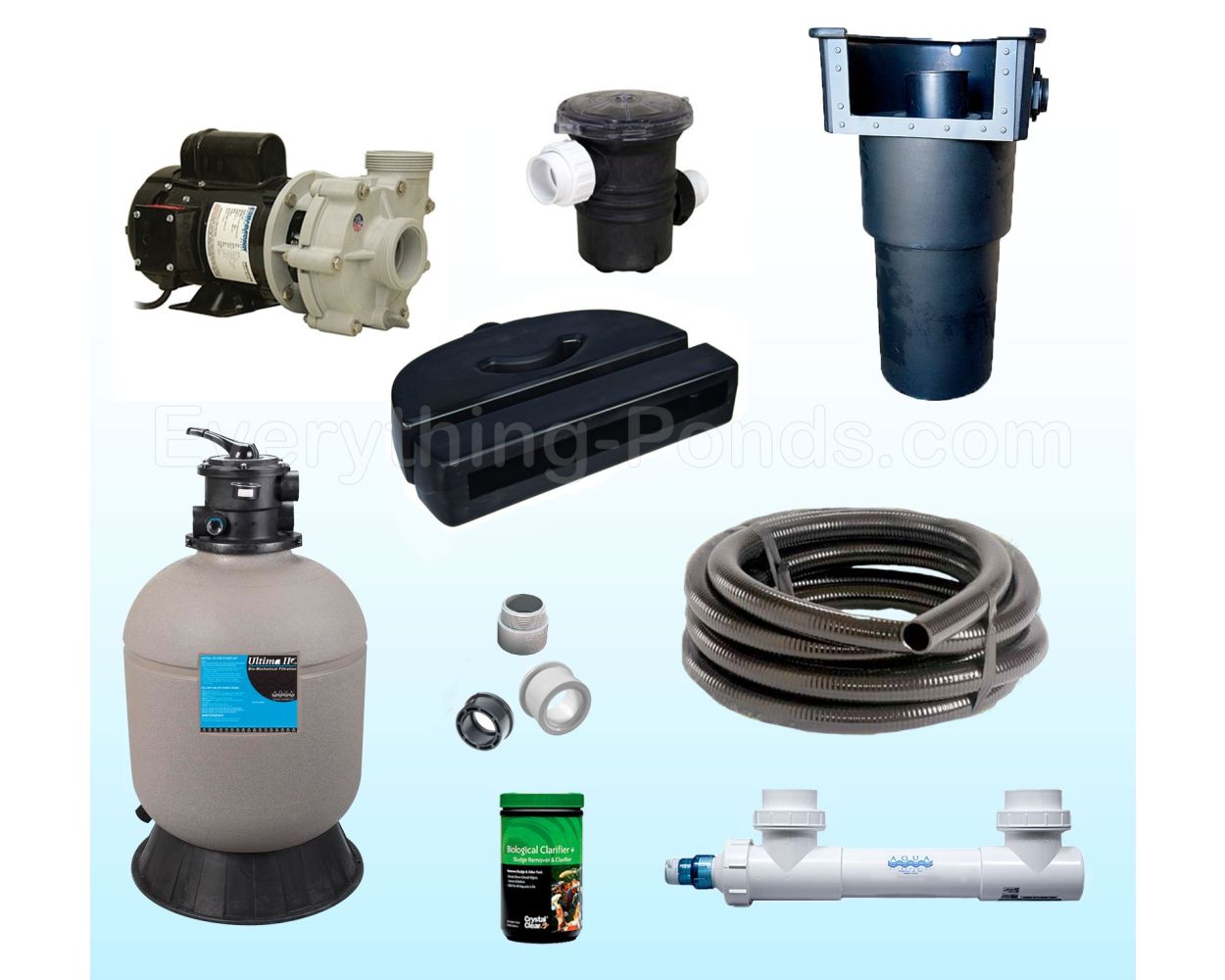

Pro Ecosystem Pond Kit w/ External Pump, 2' Falls, 2100 gph

SKU
KIT-ECO-EP-2f-2100
Grouped product items
Product Name Qty
Helix Pond Skimmer-Ext, Pre-Drilled Helix Pond Skimmer-Ext, Pre-Drilled
$599.99
Autofill Kit with Faucet Connection - Helix Skimmer Autofill Kit with Faucet Connection - Helix Skimmer
$74.99
Matala Pad for Helix Skimmer Matala Pad for Helix Skimmer
$21.99
Sequence Priming Pot Strainer Basket - 2 In 90 ci Sequence Priming Pot Strainer Basket - 2 In 90 ci
$128.00
Sequence 4K 3600 Energy Saving Pump Sequence 4K 3600 Energy Saving Pump
$749.00
Aqua Ultraviolet Ultima II 4000 Filter 2 In Valve Aqua Ultraviolet Ultima II 4000 Filter 2 In Valve
$2,152.74
Aqua UV Classic 40 watt UV Sterilizer/Clarifier Aqua UV Classic 40 watt UV Sterilizer/Clarifier
$568.50
Aquascape Waterfall Spillway 22 Aquascape Waterfall Spillway 22"
$224.99
Flexible Schedule 40 PVC Hose - 2in x 25ft Flexible Schedule 40 PVC Hose - 2in x 25ft
$119.00
CrystalClear Biological Clarifier - 24 Packets (Treats 24,000 gal) CrystalClear Biological Clarifier - 24 Packets (Treats 24,000 gal)
$39.99
PVC Adapter Fitting - 2 PVC Adapter Fitting - 2" MPT x 2" Slip
$3.39
PVC Union Fitting - 2 PVC Union Fitting - 2" Slip
$24.99
PVC Threaded Nipple Fitting - 2 PVC Threaded Nipple Fitting - 2" Threaded
$5.29
Swing Check Valve - 2 Swing Check Valve - 2" Threaded
$49.99
Total selected:

The pro level ecosystem pond kit includes all our best equipment recommendations in one convenient package. The kit on this page is designed to pump 2100 gallons per hour.

Size of pond for the 2100 gph kit:

  • Fish Pond - up to 2100 gallons of water in the pond for pumping the entire contents of the pond each hour.
  • No Fish in Pond - up to 4200 gallons of water max in the pond for pumping the entire pond every one to two hours.

You do not have to purchase all items in the kit, you set quantity to 0 below if there is an item you do not want to purchase.

Add to Cart to see Total Price

Specs

  • Flow Rate: 2100 gph
  • Pump: External
  • Waterfall Height: 2 Feet
  • Waterfall Width: 22"
  • Pond Size: Fish ponds up to 2100 gallons, and non-fish ponds up to 4200 gallons.
  • Example Pond Size:
  • Includes Liner? No
  • Includes Waterfall Spillway? Yes
  • Head Pressure:   12’ - assuming 2’ high waterfall, 2” pipe, 25’ of pipe, 7’ for filter, UV clarifier installed

This kit does not include a liner. We recommend our Premium Grade RPE Laminated Liner for free-form shapes, or our Rectangular Box-Welded Liners for formal rectangular shapes.

Pro Ecosystem Pond Kit - External pump - 2100 gph

Order of Water Flow / Installation

  1. Water enters skimmer
  2. Check Valve with 2" threaded outlet (inside skimmer)
  3. 2" threaded nipple adapter
  4. 2" bulkhead fitting that comes with helix skimmer
  5. PVC Adapter 2" MPT to 2" slip that comes with skimmer
  6. 2" pip from skimmer to priming pot (optional)
  7. Priming pot strainer basket with 2" inlet/outlet
  8. Priming pot 2" threaded outlet direct connection to pump 2" FPT inlet
  9. 2" outlet of 4k series pump
  10. Short stub of 2" pipe into 2" PVC union fitting for quick disconnect of pump
  11. Pipe run 2" pipe from union fitting to filter
  12. Filter with 2" inlet/outlet
  13. 2" pipe run from filter to uv clarifier
  14. UV clarifier with 2" inlet/outlet
  15. 2" pipe to Waterfall
  16. PVC fitting 2" slip to 2" MPT
  17. 2" threaded inlet into waterfall unit

Included Fittings in Kit:

  • (1) 2" Slip x 2" MPT
  • (1) Bulkhead Fitting 2" (comes with skimmer)
  • (1) 2" Slip x 2" MPT (comes with skimmer)
  • (1) 2" PVC Union
  • (1) 2" Threaded Check Valve
  • (1) 2" Threaded Nipple Adapter



More Information
SKU KIT-ECO-EP-2f-2100
