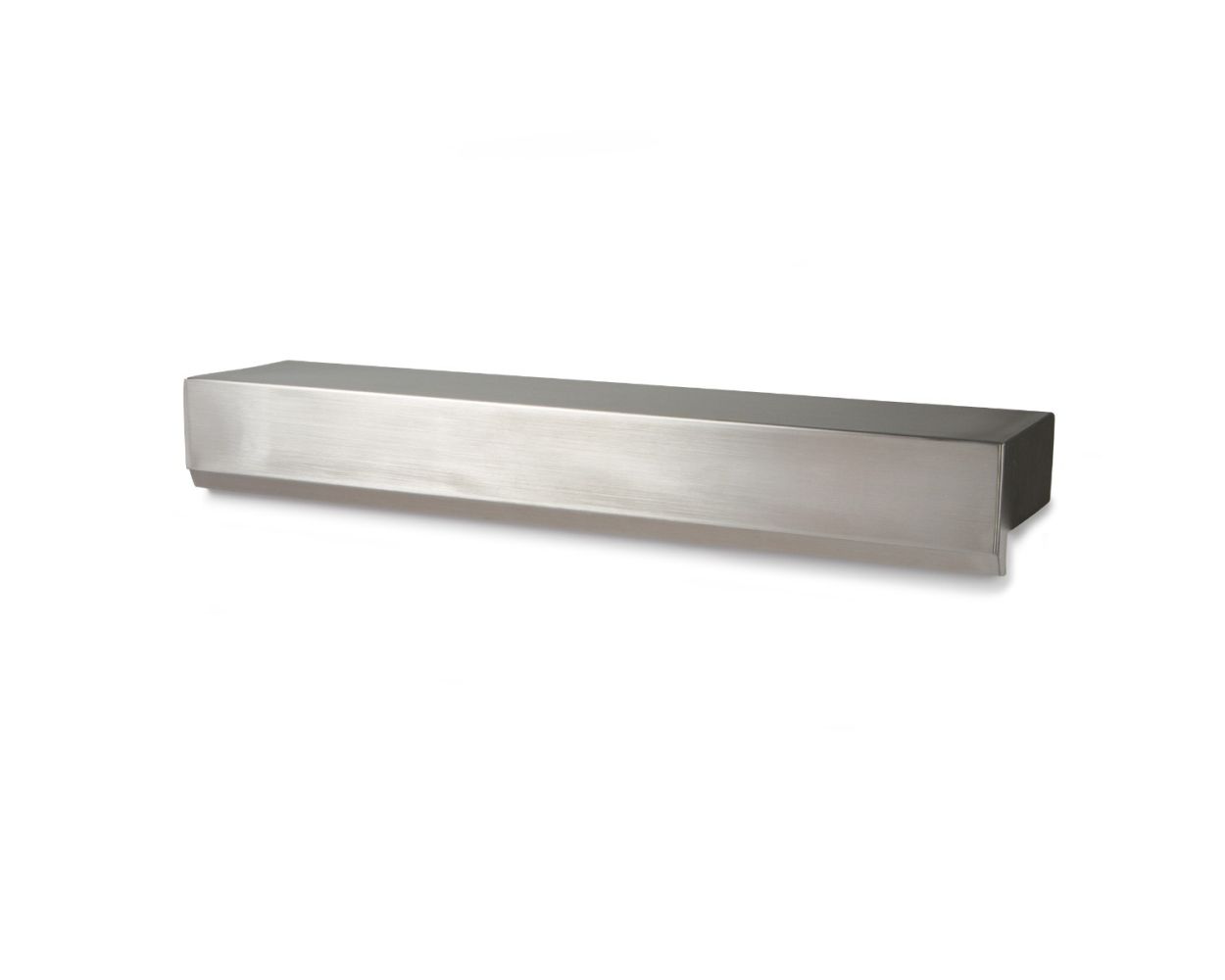

Formal Waterwall Spillway - 24"
Specs
- 24"W x 5¼"D x 3½"H
- 1 1/2" FPT inlet. Use a 1 1/2"MPT x Slip adpater to connect to pipe
- 3 year warranty
- Can be used in chlorinated swimming pools
- Flow Rate:
- Smooth Surfaces - 750-1500 gph
- Rough Surfaces - 1500-3000 gph
Supply List for a Waterwall Feature
Basin
Minimum size 44" H x 33" L x 16" D
Typically a formal waterfall basin needs to be 20" at minimum wider than the size of the spillway/scupper. For a 24" scupper we would recommend a minimum basin size of 44" and about 22"-24" wide. These numbers are based on the spillway being 1' 1/2" - 3' above the basin, if your scupper is higher then that you will need a large basin to collect all of the splashing.
Smooth Surface Pump
This pump will produce 1215 gph at 5' of head pressure, meant to be paired with a smooth wall surface.
Rough Surface Pump
This pump will produce 2251gph at 5' of head pressure, meant to be paired with rough surfaces.
AutoFill
Water Tight Adapter
Use a bulkhead fitting to bring the pipe through the liner from the submerisble pump.
Pipe
MPT x Slip Adapter
Use a thread adapter to connect your pipe to the back of the waterwall.
Adjust Flow Rate
Silicone
| SKU | CWS24-316-Config |
|---|
