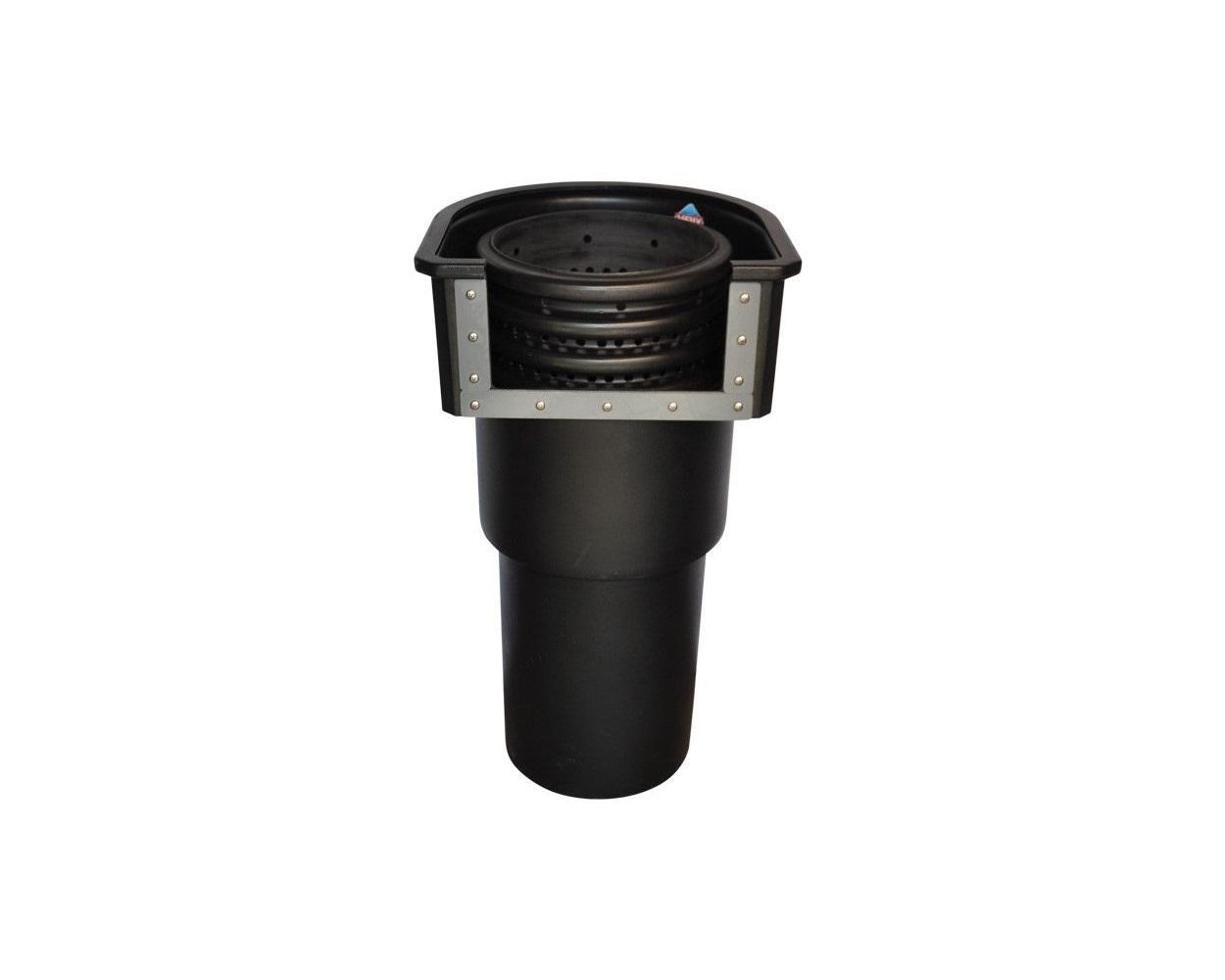

Helix Bio-Mechanical Reactor
3 in 1 Pond Filtration System:
- Mechanical filter to remove debris
- Biolgoical filter for water clarity
- Acts as a base for a beautiful water feature
Benefits
- No manual scrubbing needed! Keep your hands clean with the built-in backwash feature.
- No harmful chemicals used in cleaning.Uses ponds water to backwash which keeps cholorinated city water out of your pond.
- Easy to hide. Since this filter lives inside of the waterfall, you don't need to bury or hide a filer in a pump house or leave it exposed next to the ponds edge.
- Clean water even with a high fish load. Powerful biological filtration combined with upper and lower drains that remove surface scum and heavy solids keeps your pond clean.
- Optimal water quality and clarity is achieved through maximizing biological filtration by pairing the Helix Floating Bio Media with aeration to keep it in constant circulation.
SPECS
Small Helix Filter | Large Helix Filter | |
Dimensions | 18" x 18" x 35" | 32" x 32" x 32" |
Weir Door | 15" | 24" |
Max Flow | 3,000 gph | 4,500 gph |
Pond Size | 1,000 gallons | 3,000 gallons |
Included Media | 15 litres | 40 litres |
Recommended Additional Media (purchase locally) | 35 pounds of 3/4" lava rock or similar | 100 pounds of 3/4" lava rock or similar |
| Small Helix Filter | Large Helix Filter | |
| Dimensions | 18" x 18" x 35" | 32" x 32" x 32" |
| Weir Door | 15" | 24" |
| Max Flow | 3,000 gph | 4,500 gph |
| Pond Size | 1,000 gallons | 3,000 gallons |
| Included Media | 15 litres | 40 litres |
| Recommended Additional Media (purchase locally) | 35 pounds of 3/4" lava rock or similar | 100 pounds of 3/4" lava rock or similar |
Features
- Made in America
- Stainless steel hardware
- Large filter body
- Large open area for lava rock media (not included - must be purchased locally). No filter bags needed (as they can inhibit flow)
Parts Included
- Filter body
- Radial diffuser
- Aeration diffuser
- Perforated media grate
- Air diffuser
- Stand pipe with vacuum exhaust connection
- Aeration standpipe
- 2" MPT x slip adapter
- 2" knife valve
- Upper and lower exhaust pipe configuration
- Filter media + yellow bucket
- Instruction manual
Maintenance
The Helix Filters have been designed from the ground up for easier cleaning. The upper section of the filter contains the biological filter media which does not need to be cleaned. The lower section of the filter body offers mechanical filtration which needs to be backwashed regularly to remove solids. To clean the filter connect a shop vac (set to blow) or a blower to the standpipe then follow the step by step instructions provided with the filter.
Filter Media
The upper section of the Helix Bio Mechanical Reactor houses the exceptional Helix Floating Bio Media that comes with the purchase of the unit.
The lower section of the filter is where the mechanical filtration occurs. This section needs to be filled with lava rock that can be sourced locally. Lava rock not included. Use 1" - 1.5" rock.
Soak included filter media overnight in a tub of water. This allows for easier installation as it prevents the media from bubbling out into the pond on initial set up.
| SKU | 2877-Config |
|---|
