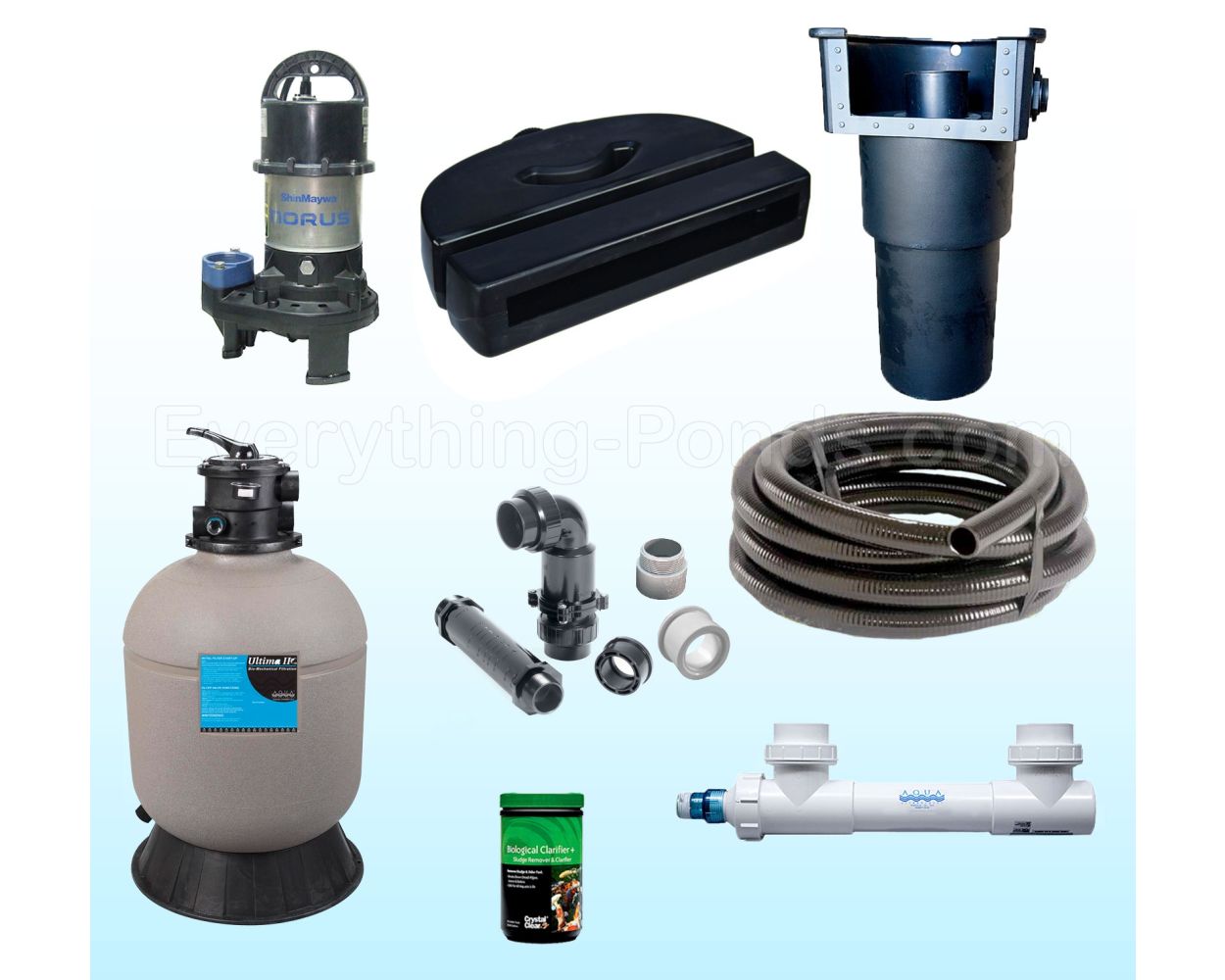

Pro Ecosystem Pond Kit w/ Submersible Pump, 7' Falls, 2800 gph
The pro level ecosystem pond kit includes all our best equipment recommendations in one convenient package. The kit on this page is designed to pump 2800 gallons per hour.
Size of pond for the 2800 gph kit:
- Fish Pond - up to 2800 gallons of water in the pond for pumping the entire contents of the pond each hour.
- No Fish in Pond - up to 5600 gallons of water max in the pond for pumping the entire pond every one to two hours.
You do not have to purchase all items in the kit, you set quantity to 0 below if there is an item you do not want to purchase.
Add to Cart to see Total Price
Specs
- Flow Rate: 2800 gph
- Pump: Submersible
- Waterfall Height: 7 Feet
- Waterfall Width: 22"
- Pond Size: Fish ponds up to 2800 gallons, and non-fish ponds up to 5600 gallons.
- Example Pond Size:
- Includes Liner? No
- Includes Waterfall Spillway? Yes
- Head Pressure of System: 18’ with 7’ high waterfall, 50’ of 2” pipe
This kit does not include a liner. We recommend our Premium Grade RPE Laminated Liner for free-form shapes, or our Rectangular Box-Welded Liners for formal rectangular shapes.
Order of Water Flow / Installation
- Water enters skimmer
- Water enters pump inside skimmer. Pump has 2" threaded outlet
- Connect to check valve with 2" slip outlet
- Short piece of 2" PVC pipe to connect check valve to PVC adapter
- PVC adapter 2" slip to 2" MPT threaded
- 2" bulkhead fitting that comes with helix skimmer
- PVC adapter 2" MPT to 2" slip that comes with skimmer
- 2" pipe from skimmer to filter
- Filter with 2" inlet/outlet
- 2" pipe from filter to uv clarifier
- Filter with 2" inlet/outlet
- 2" pipe to Waterfall
- PVC fitting 2" Slip to 2" MPT to connect pipe to waterfall
- 2" Threaded inlet into waterfall unit
Included Fittings in Kit: (2) 2" Slip x 2" MPT, (1) Bulkhead Fitting 2" (comes with skimmer), (1) 2" Slip x 2" MPT (comes with skimmer)
SKU | KIT-ECO-SP-7f-2800 |
---|
