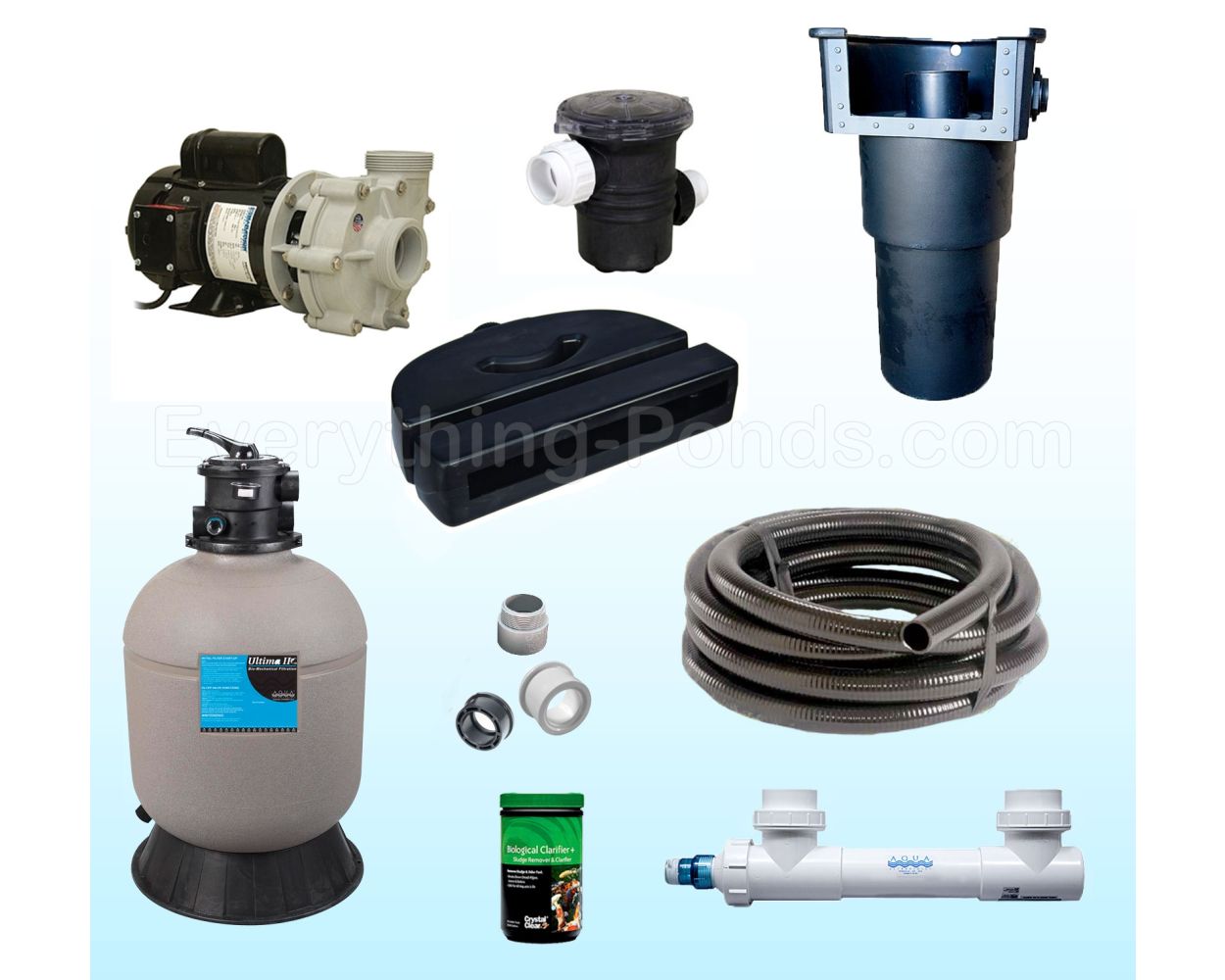

Pro Ecosystem Pond Kit w/ External Pump, 3' Falls, 3300 gph

SKU
KIT-ECO-EP-3f-3300
Grouped product items
Product Name Qty
Helix Pond Skimmer-Ext, Pre-Drilled Helix Pond Skimmer-Ext, Pre-Drilled
$599.99
Autofill Kit with Faucet Connection - Helix Skimmer Autofill Kit with Faucet Connection - Helix Skimmer
$74.99
Matala Pad for Helix Skimmer Matala Pad for Helix Skimmer
$21.99
Sequence Priming Pot Strainer Basket - 2 In 90 ci Sequence Priming Pot Strainer Basket - 2 In 90 ci
$128.00
Sequence 4K 5800 Energy Saving Pump Sequence 4K 5800 Energy Saving Pump
$775.00
Aqua Ultraviolet Ultima II 4000 Filter 2 In Valve Aqua Ultraviolet Ultima II 4000 Filter 2 In Valve
$2,152.74
Aqua UV Classic 57 watt UV Sterilizer/Clarifier Aqua UV Classic 57 watt UV Sterilizer/Clarifier
$623.60
Aquascape Waterfall Spillway 22 Aquascape Waterfall Spillway 22"
$224.99
Flexible Schedule 40 PVC Hose - 2 Inch x 50 Ft Flexible Schedule 40 PVC Hose - 2 Inch x 50 Ft
$233.00
CrystalClear Biological Clarifier - 24 Packets (Treats 24,000 gal) CrystalClear Biological Clarifier - 24 Packets (Treats 24,000 gal)
$39.99
PVC Adapter Fitting - 2 PVC Adapter Fitting - 2" MPT x 2" Slip
$3.39
PVC Union Fitting - 2 PVC Union Fitting - 2" Slip
$24.99
PVC Threaded Nipple Fitting - 2 PVC Threaded Nipple Fitting - 2" Threaded
$5.29
Swing Check Valve - 2 Swing Check Valve - 2" Threaded
$49.99
Total selected:

The pro level ecosystem pond kit includes all our best equipment recommendations in one convenient package. The kit on this page is designed to pump  3300 gallons per hour.

Size of pond for the  3300 gph kit:

  • Fish Pond - up to  3300 gallons of water in the pond for pumping the entire contents of the pond each hour.
  • No Fish in Pond - up to 6600 gallons of water max in the pond for pumping the entire pond every one to two hours.

You do not have to purchase all items in the kit, you set quantity to 0 below if there is an item you do not want to purchase.

Add to Cart to see Total Price

Specs

  • Flow Rate: 3300 gph
  • Pump: External
  • Waterfall Height: 3 Feet
  • Waterfall Width: 22"
  • Pond Size: Fish ponds up to 3300 gallons, and non-fish ponds up to 6600 gallons.
  • Example Pond Size:
  • Includes Liner? No
  • Includes Waterfall Spillway? Yes
  • Head Pressure:   14’ of head with 3’ high waterfall, 50’ of 2” pipe, UV installed

This kit does not include a liner. We recommend our Premium Grade RPE Laminated Liner for free-form shapes, or our Rectangular Box-Welded Liners for formal rectangular shapes.

Pro Ecosystem Pond Kit - External pump - 2100 gph

Order of Water Flow / Installation

  1. Water enters skimmer
  2. Check valve with 2" slip outlet (inside skimmer)
  3. Short piece of 2" PVC pipe to connect check valve to PVC adapter
  4. PVC adapter 2" Slip to 2" MPT threaded
  5. 2" bulkhead fitting that comes with helix skimmer
  6. PVC adapter 2" MPT to 2" slip that comes with skimmer
  7. 2" pipe from skimmer to priming pot (optional)
  8. Priming pot strainer basket with 2" inlet / outlet
  9. Priming pot 2" threaded outlet direct connection to pump 2" female threaded inlet
  10. 2" outlet of 4k 5800 pump to PVC Adapter 2" MPT to 2" slip
  11. Short stub of 2" pipe into 2" PVC union fitting for quick disconnect of pump
  12. Pipe run 2" pipe from union fitting to filter
  13. Filter with 2" inlet/outlet
  14. 2" Pipe run from filter to uv clarifier
  15. UV clarifier with 2" inlet/outlet
  16. 2" pipe to waterfall inlet
  17. PVC fitting 2" slip to 2" MPT
  18. 2" threaded inlet into waterfall unit

Included Fittings in Kit: (1) 2" Slip x 2" MPT, (1) Bulkhead Fitting 2" (comes with skimmer), (2) 2" Slip x 2" MPT (comes with skimmer), (1) 2" PVC Union



More Information
SKU KIT-ECO-EP-3f-3300
